Gypsum Chalk Powder Making Machine

  • 1 - 4 Sets
    $150,000.00
  • >=5 Sets
    $50,000.00
Power:
135-350kw
Model Number:
HGM80 HGM90 HGM100 HGM125 HGM1680
Samples:
$200,000.00 /Set | 1 Set (Min. Order) | Buy Samples
Lead Time:
Quantity(Sets) 1 - 1 >1
Est. Time(days) 15 Negotiable
Customization:
Customized packaging (Min. Order: 5 Sets)
Graphic customization (Min. Order: 5 Sets)

More

Customized logo (Min. Order: 5 Sets) Less
Report Suspicious Activity
Overview
Quick Details
Applicable Industries:
Manufacturing Plant, Construction works , Energy & Mining
Local Service Location:
None
Showroom Location:
None
Video outgoing-inspection:
Provided
Machinery Test Report:
Provided
Marketing Type:
Ordinary Product
Warranty of core components:
1 Year
Core Components:
PLC
Condition:
New
Type:
ultra fine grinding mill, Medium Speed Micro Powder Mill
Motor Type:
AC Motor
Capacity(t/h):
1-45
Place of Origin:
Shanghai, China
Brand Name:
Clirik
Dimension(L*W*H):
18x4.6x9.6m
Weight:
30t
Certification:
CE&ISO9001:2008
Warranty:
1 Year
After-sales Service Provided:
Video technical support, Online support, Field installation, commissioning and training, Field maintenance and repair service
Motor brand:
Siemens
Application:
Stone Powder Grinding
Power Supply:
AC 380V, 50HZ
Control System:
PLC (Siemens Available)
Layer Number:
3
Ring Diameter:
1000mm
Main Shaft Speed:
180-200 r.p.m
Max. Input Size:
20mm
Output Size:
5-47 micron
Supply Ability
Supply Ability:
100 Set/Sets per Month
Packaging & Delivery
Packaging Details
Container Loading
1.Big parts: plastic sheeting
2.Small parts: fumigation wooden box
Port
Shanghai
Lead Time :
Quantity(Sets) 1 - 1 >1
Est. Time(days) 15 To be negotiated
Video Description
Product Description

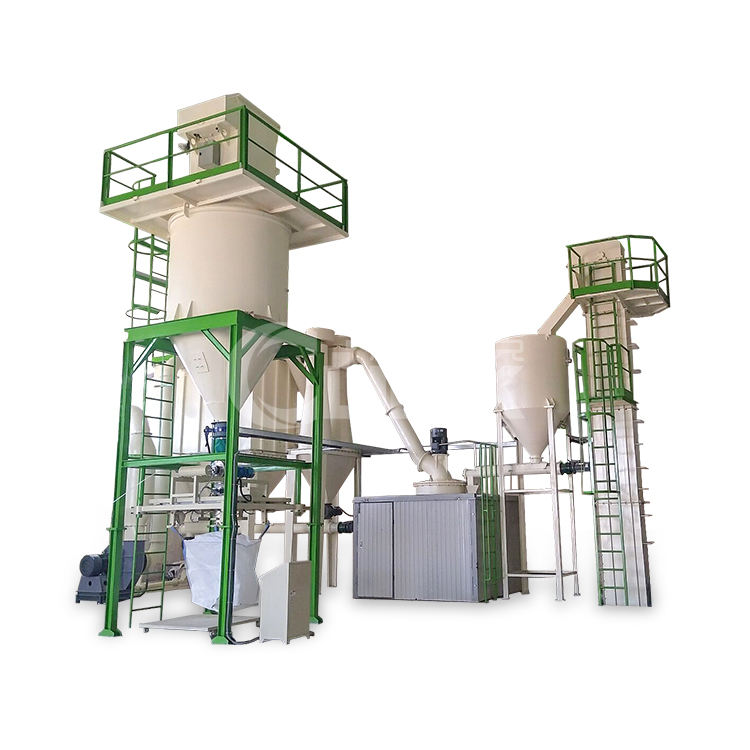

Gypsum Chalk Powder Making Machine Introduction





Name: Gypsum Chalk Powder Making Machine
Model: HGM series
Brand: Clirik
Powder Fineness Process Ability: 325-3000 mesh
Capacity: according to your demand about powder fineness, the finial capacity can be adjusted between 0.5-45 t/h
Use Range: can be used in more than 150 kinds of stone materials powder grinding, such as: calcite, calcium carbonate, dolomite, gypsum, carbon black, gypsum, kaolin, marble and so on
Application: mining, chemiscal, transport and many other different areas



Gypsum Chalk Powder Making Machine Application





HGM gypsum grinding mill is mainly used for grinding the material with middle and low hardness, below 6% moisture, and the material should be non-explosion and non-flammability, such as: calcite, chalk,limestone, dolomite, kaolin, bentonite, steatite, mica, magnetite,iolite, pyrophillite, vermiculite, meerschaum, attapulgite, diatomite, barite, gypsum, alunite, graphite, fluorite, phosphate ore, potassium ore pumice, etc



Gypsum Chalk Powder Making Machine Advantages



1. Energy Saving: compare with the comon stone powder grinding machine, the HGM minerals grinding machine can decrease about 20%~30% electrinic consums



2. Long Service Life: because the grinding ring and roller are forged by special material with high utilization. Under the same grinding material and finish special size, the lifecycle of spare parts is about one year, which is 2-3 times longer than impact mill or turbo mill



3. Environment Friendly: the application of pulse bag filter and muffler greatly alleviates dust pollution and noise



4. Cheaper Price& High Quality: because our Shanghai Clirik is the HGM series grinding machine manufacturer, so you can get machine from us in the cheapest price, and at the same time we also can supply the warmly after sale service



Gypsum Chalk Powder Making Machine Working Principle





When the grinding mill is at work, the main bearing and each dial are driven by electromotor through reducer, and all the grinding rollers are rolling in the ring channels driving by dial through plunger. The materials are driven to the edge of the turn plate by the centrifugal force and fall down into the grinding chambers. The high-pressure air blower constantly inhales air, airflow with crushed materials are brought to classifier whose high-speed impeller will screen the airflow: The unqualified particle size will fall and return to the mill for being reground while the qualified particle size mixed with air will go into the cyclone powder collector. Most of the qualified powders will fall and exit from the discharging valve at the bottom; A small proportion of the fine powders, with airflow, moves to the dust cleaner. The materials from the above two lots are sent by the conveyor to get finished powders packed. In addition, filtered clean air will be emitted from muffler in the end.



Gypsum Chalk Powder Making Machine Technology Data



Model HGM80 HGM90 HGM100 HGM125 HGM1680
Ring Diameter(mm) 800 900 1000 1250 1680
Ring Number (PCS) 3 3-4 4 4 4
Roller Number(PCS) 18-21 24-29 28-36 30-44 30-40

Main Shaft Speed

(r. p. min)

230-240 200-220 180-200 135-155 120-130
Input Size (mm) ≤10 ≤10 ≤15 ≤15 ≤20
Finished Size (um/mesh) 74-5
(200-2500)
74-5
(200-2500)
74-5
(200-2500)
100-6
(150-2000)
100-9
(150-1500)
Capacity (t/h) 0.4-4.5 0.6-6.5 1-9 2-16 3.8-30

Outlet Size

L*W*H (m)

13.9*4*6.2 14.7*4.8*7.2 18*4.6*8.6 14*9*10.25  26.3*7.5*11.9



Take HGM100 as an example for calcium carbonate powder grinding



HGM100L micro powder mill - calcium carbonate
Fineness (micron ) Capacity (t/h) Power consumption for one ton powder (kwh /ton)
5 1.5 125
8 2.2 85
10 3 63
15 4.5 42
20 5.5 34
25 7 26






Packaging & Shipping



 1.Seaworthy packing with sheet, fixed box, etc.

 2. Container Loading

 3. Delivery time: 15 days after receiving deposit.

 4. All payment terms are available.





Company Information



Shanghai Clirik Machinery Co., Ltd located in Pudong New district of Shanghai china, as a pioneer enterprise, which is specializing in research, manufacture and sales of all kinds of grinding mill, from coarse grinding mill, fine grinding mill and ultra fine grinding mill, grinding mill related equipment, such as powder modifying machine, powder packing machine.powder conveying system, etc. We have devoted into grinding field for more than 30 years, we beliveonly focus can be professional.



Our company has already formed a full set of modern production line, equipped with intelligent, standardized testing and controlling laboratories, owned a professional team for R&D, production, sales and service.



Our Company

Our Certification

Our Working Site

Our Customers Visiting

Our Exhibition



Our Services



Pre-Sales Service



Online interactive service

Offline interactive service

Solution design service

Visit reception service





After-Sales Service



Installation and debugging service

Training service

Other more service(Clients have any needs or problems; our engineer can take plane and get the worksite to provide service in 48 hours.)



FAQ





Because there 5 different kinds of ultrafine grinding mills, so our HGM series grinding mill unit has different prices, I need to ask you some details for sending you the more suitable quotation:



1.Which kind of material you are going to grinding?

     (Dolomite; Calcite; Quartz; Basalt; Barite; Feldspar ; Gravel; Bentonite; Gypsum; Granite; Coal; Slag; Pebble; Others )



2. What's the production capacity you want? How many tons or cubic meters per hour?

     ( > 100 TPH  > 50 TPH  > 30 TPH  > 10 TPH  > 1 TPH  < 1 TPH)



3.What's the granularity of the final products you need?

     (in milimeter, micron or mesh)



4. What's the max input size of the material?

     (In inch,centimeter or milimeter)



We will give you factory price with full specification,so pls leave us an inquiry to know more details about price, packaging shipping and discount.
