good quality powder grinding mill/grinding roller mill/mining grinding mill with cheaper price

  • 1 - 9 Sets
    $59,999.00
  • >=10 Sets
    $5,000.00
Power(W):
132-350kw
Model Number:
HGM
Lead Time:
Quantity(Sets) 1 - 1 >1
Est. Time(days) 15 Negotiable
Customization:
Customized logo (Min. Order: 1 Sets)
Customized packaging (Min. Order: 1 Sets)

More

Graphic customization (Min. Order: 1 Sets) Less
Samples - $50,000.00 /Sets, 1 Sets (Min. Order): Buy Samples
Loading...
Report Suspicious Activity
Overview
Quick Details
Applicable Industries:
Manufacturing Plant, Construction works , Energy & Mining
Condition:
New
Type:
grinding mill
Motor Type:
AC Motor
Capacity(t/h):
0.5-45 t/h
Place of Origin:
Shanghai, China
Brand Name:
Clirik
Dimension(L*W*H):
M) Dimension
Weight:
34t~60T
Certification:
ISO9001:2008
Warranty:
1 Year
After-sales Service Provided:
Video technical support, Online support, Field installation, commissioning and training, Field maintenance and repair service, Engineers available to service machinery overseas
Application:
Ore
Color:
Customerized
The Machines classification:
Granding Mill Machine
Product name:
Ore Grinding Machine
Installation:
Engineer's Guide
Spare parts supplying:
Lifelong Provide
After sale service:
Engineer Avalable
Test&Installation:
Senior Professional Engineers Assigned
Feeding size:
Equal
Supply Ability
Supply Ability:
50 Set/Sets per Month
Packaging & Delivery
Packaging Details
woodenbox
Port
shanghai
Lead Time :
Quantity(Sets) 1 - 1 >1
Est. Time(days) 15 To be negotiated
Product Description


Product Application

Capacity:0.5-30t/h
Feeding size:≤20mm
Output Size:5-74um/mesh

HGM Series ultrafine grinding mill is the equipment specializing in producing fine and superfine powder of non-inflammable, non-explosive and brittle materials with Mohs's hardness under six, such as calcite, chalk, limestone, dolomite, kaolin, bentonit and other more than 400 kinds of stone materials.

Technical Data

Model
HGM80
HGM90
HGM100
HGM125
HGM1680
Ring Diameter(mm)
800
900
1000
1250
1680
Ring Number (PCS)
3
3-4
4
4
4
Roller Number(PCS)
18-21
24-29
28-36
30-44
30-40
Main Shaft Speed (r. p. min)
230-240
200-220
180-200
135-155
120-130
Input Size (mm)
≤10
≤10
≤15
≤15
≤20
Finished Size (um/mesh)
74-5

(200-2500)
74-5

(200-2500)
74-5

(200-2500)
100-6

(150-2000)
100-9

(150-1500)
Capacity (t/h)
0.4-4.5
0.6-6.5
1-9
2-16
3.8-30
Outlet Size L*W*H (m)
13.9*4*6.2
14.7*4.8*7.2
18*4.6*8.6
14*9*10.25
26.3*7.5*11.9

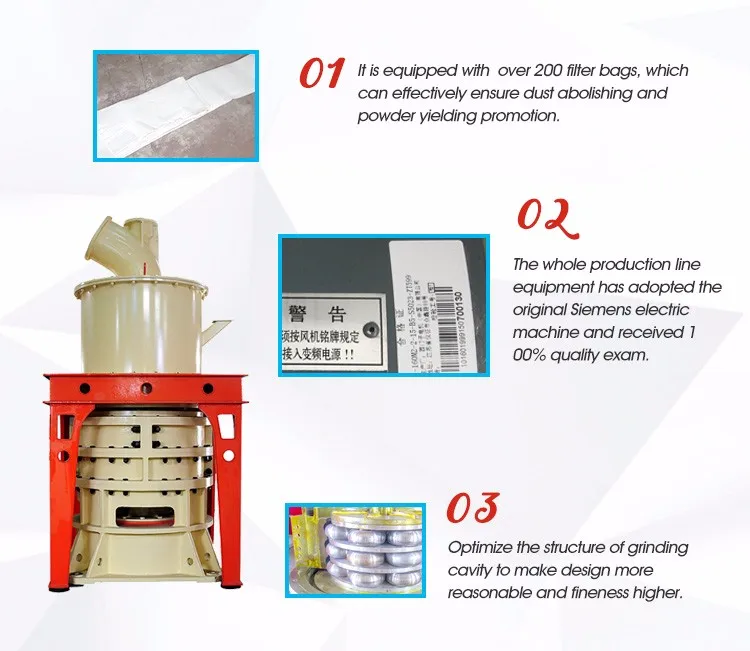

Main Features

High Efficiency
Under the same finished final size and the same motor power, the capacity of ultrafine grinding mill is twice as much as jet mill, mixing grinder and ball mill, and energy consumption decreased 30%.

Long lifecycle of spare parts
The ring and roller are forged by special material with high utilization,the lifetime can reach 2-5 years for grinding calcite carbonate.

High safety and reliability
As no rolling bearings or screws in grinding cavity, there are no problems caused by bolts shedding or rapid wear of bearings and seal components.

High fineness, flexible adjustment
The final fineness of the grinding materials can be adjusted between 250 meshes and 2500 mesh (74-5 micron), and the product fineness can reach D97≤5μm.

Environment-friendly
The application of pulse bag filter and muffler greatly alleviates dust pollution and noise.

Advanced intelligent speed control device
Convenient adjusting, more uniform particle size.

Certifications
Customer Visit
Our Service

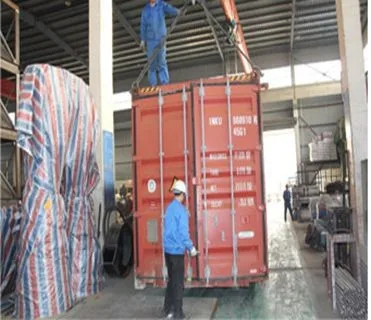

Packing & Delivery
Packaging
Size
123 (L) * 456 (W) * 789 (D)
      Model
HGM1680



Packaging Details
The normal package is wooden box(Size: L*W*H). If export to european countries,the wooden box will be fumigated.If container is too tigher,we will use pe film for packing or pack it according to customers special request.
Work Site
Our Company
Why Choose Us

Q&A

1. What advantages does your micro powder machine, stone mill, powder grinding mill have?

-The main advantage of our micro powder machine, stone mill, powder grinding mill over other kinds of mills is that you can grind a friable or crystalline material to 5 - 74 microns average particle size and classify in a very narrow particle size range at the same time. There are no moving parts to wear out or generate heat in our mill and no screens to plug or be punctured.

2. Can you guarantee the quality of your micro powder machine, stone mill, powder grinding mill?

---We have passed CE&ISO9001:2008, and our crushers have been exported to Eastern Europe, Middle East, Africa, South Asia, Southeast Asia, Oceania, America, etc.

3.How many years have you been manufacturing the machine?

---8 years. Since the foudation of our company, we have been manufacturing the machine, which updated many times, now the machine runs stable and of high quality

Inquiry Service

More details we needed for sending you more suitable quotation,

1. What kind of raw material do you want to process?

2. What is the capacity per hour do you need?

3. What is the raw material input size?

4. What is the finished size you required?

Any inquiries of our machine, stone mill, powder grinding mill will be highly regard and we will give you the best quotation ASAP. Your satisfaction is our final ann forever pursuit.

Please fill in your need products and your message and do not forget email and/or phone if you like to be contacted.

We look forward to your inquiries!
Shanghai Clirik Machinery CO., LTD.
