Germany technology ultrafine powder vertical roller mill hot sale

  • 1 - 4 Sets
  • >=5 Sets
132-350 kw
Model Number:
$150,000.00 /Set | 1 Set (Min. Order) | Buy Samples
Lead Time:
Quantity(Sets) 1 - 1 >1
Est. Time(days) 15 Negotiable
Customized logo (Min. Order: 5 Sets)
Customized packaging (Min. Order: 5 Sets)


Graphic customization (Min. Order: 5 Sets) Less
Report Suspicious Activity
Quick Details
Applicable Industries:
Manufacturing Plant, Construction works , Energy & Mining
Motor Type:
AC Motor
Place of Origin:
Shanghai, China
Brand Name:
M) Dimension
1 Year
After-sales Service Provided:
Video technical support, Online support, Field installation, commissioning and training, Engineers available to service machinery overseas
ultrafine vertical roller mill
Stone Powder Grinding
2.2~2.6 ton per hour
Engineer's Guide
Feeding size:
under 20mm
Spare parts supplying:
Lifelong Provide
The Machines classification:
Granding Mill Machine
24 Models
Supply Ability
Supply Ability:
50 Set/Sets per Month
Packaging & Delivery
Packaging Details
Picture Example:
Lead Time :
Quantity(Sets) 1 - 1 >1
Est. Time(days) 15 To be negotiated
Video Description
Product Description

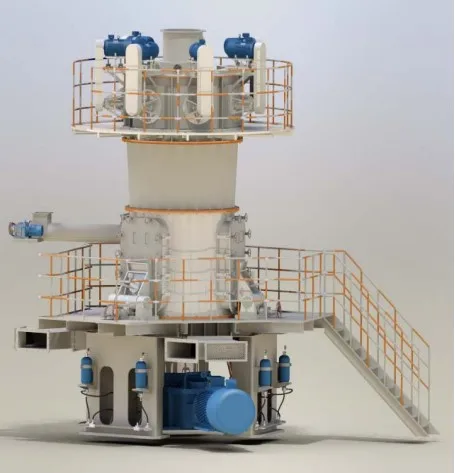

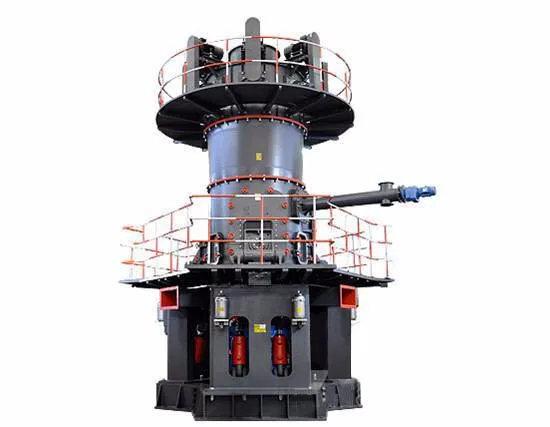

Overview of Ultrafine Vertical Roller Mill

The ultrafine vertical roller mill was produced by Shanghai Clirik Machinery in 2017, relying on 12 years of experience in the ultrafine powder and based on German and Taiwan ultrafine vertical mill technologies. the top technical team members were joined this project. Besides, high-quality wear-resistant parts are used to develop milling equipment, having product fineness of 400-6000 mesh.

Working Principle of Ultrafine Vertical Roller Mill

The grinding disc is driving by motor through reducer. The material falls to grinding disc from the feed opening. The materials are driven to the edge of disc by the centrifugal force and crushed into fine powders by rollers. Then, the hot air from the nozzle take the fine powder to high-efficient classifier. The qualified powder are taken by the air to the powder collector to be collected, while the unqualified powder are sent back for regrinding.

Advantages of Ultrafine Vertical Roller Mill

1. High grinding efficiency: save 20~30% power consumption compared with the ball mill. With the increasing of moisture content, it can save more and more electricity.
2. Strong drying capacity: dry and grind raw materials with moisture content as much as 15%.
3. Mutifunction: crushing, drying, grinding, separating and conveying.
4. Low noises and little dust: no direct contact between the grinding rollers and grinding disc, so metallic impact is avoided and its noises is 20~25 decibels lower. Totally closed negative pressure operation has employed by this vertical grinding mill, so there is no dust during the operation.
5. Low wear rate and little metallic pollution: its metal wear is only 5~10g/t.

Ultrafine Vertical Roller Mill Modification

1. Turn-plate(upper and down) both changed.

2. Discharging valve reduced to one.

3. Cyclone collector removed.

4. Grinder Transducer added.

5. Blower used bigger one.

6. Screw conveyor reduced.

Testing Data of Ultrafine Vertical Roller Mill

Material: limestone
Hardness: 3 mosh
Moisture: under 2%
1500 mesh: 2.2~2.6 ton per hour
2100 mesh: 1.1~1.3 ton per hour
2500 mesh: 1 ton per hour
D97 Passing Ratio

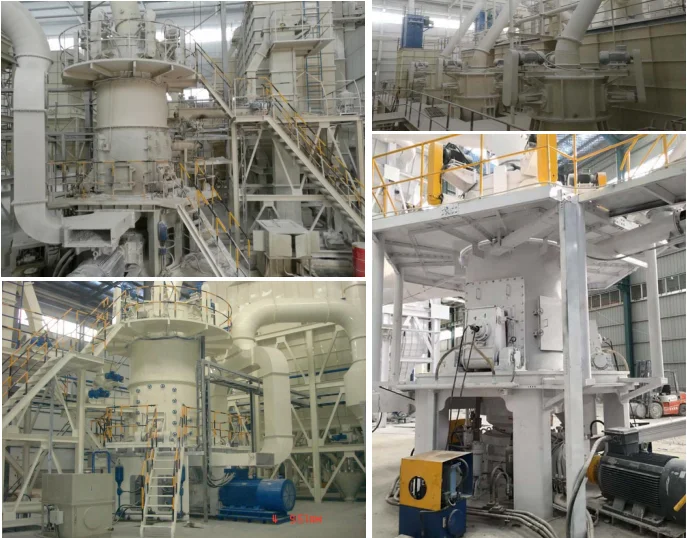

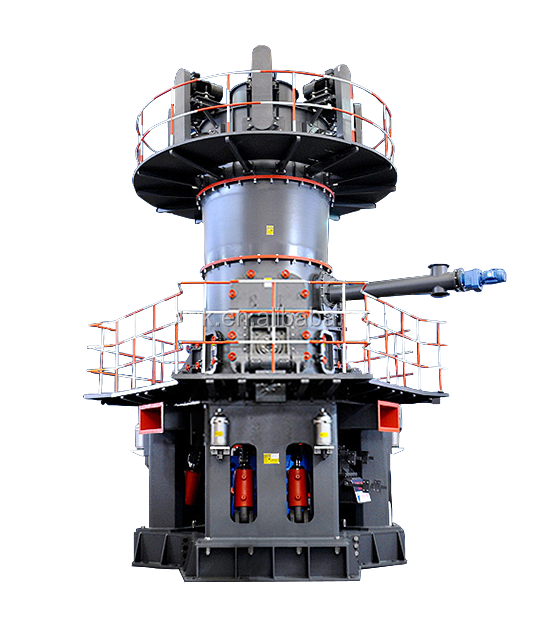

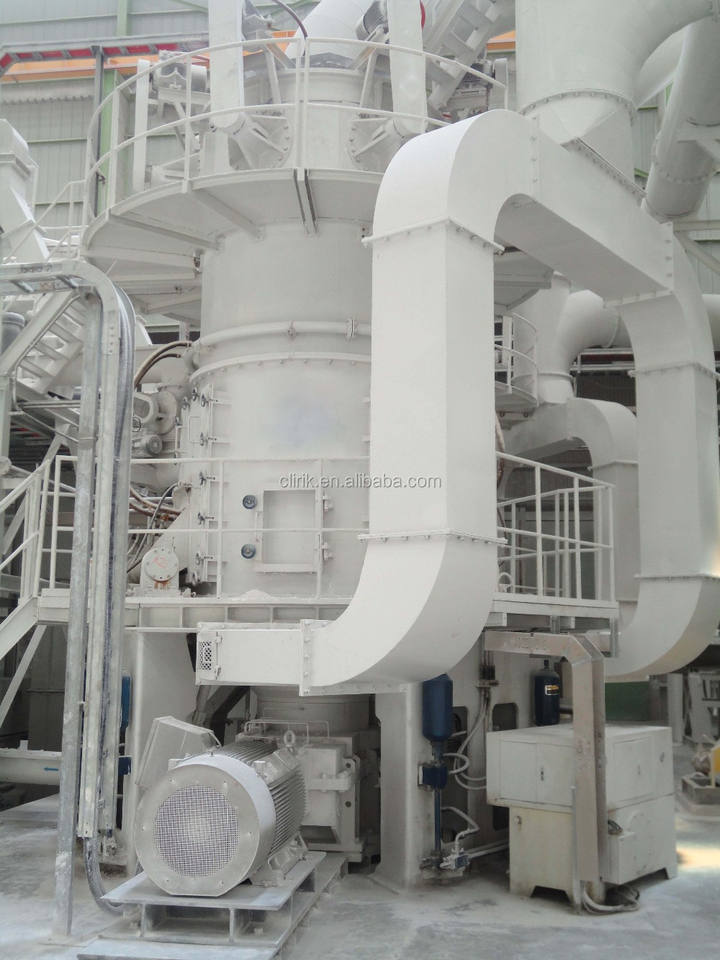

Detailed Images
Our Service


1. What advantages does your micro powder machine, stone mill, powder grinding mill have?
-The main advantage of our micro powder machine, stone mill, powder grinding mill over other kinds of mills is that you can grind a friable or crystalline material to 5 - 74 microns average particle size and classify in a very narrow particle size range at the same time. There are no moving parts to wear out or generate heat in our mill and no screens to plug or be punctured.

2. Can you guarantee the quality of your micro powder machine, stone mill, powder grinding mill?
---We have passed CE&ISO 9001:2008, and our crushers have been exported to Eastern Europe, Middle East, Africa, South Asia, Southeast Asia, Oceania, America, etc.

3.How many years have you been manufacturing the machine?
---8 years. Since the foundation of our company, we have been manufacturing the machine, which updated many times, now the machine runs stable and of high quality


More details we needed for sending you more suitable quotation

1. What kind of raw material do you want to process?

2. What is the capacity per hour do you need?
3. What is the raw material input size?
4. What is the finished size you required?

Any inquiries of our Hot sale HGM series micro powder machine, stone mill, powder grinding mill will be highly regard and we will give you the best quotation ASAP. Your satisfaction is our final and forever pursuit.

Packing & Delivery
